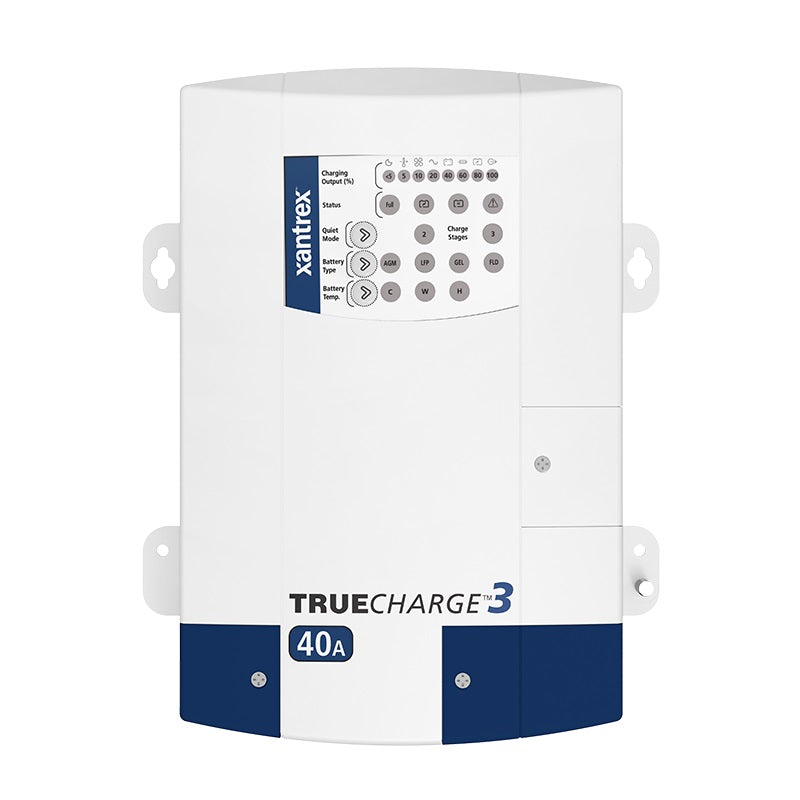

Xantrex Truecharge3 40 Amp 3 Bank 12v Charger New Version

Xantrex Truecharge3 40 Amp 3 Bank 12v Charger New Version

Xantrex Truecharge3 40 Amp 3 Bank 12v Charger

• Lithium-ion battery compatible


• Automatic 3-stage battery charger


• Parallel stack up to 2 chargers


• Circuit breaker protection

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, they can be mounted in multiple positions. Unlike it’s predecessors, TRUEcharge3 is Lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90—265 Vac, 47—63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line.

Output current (nominal)
40 A

Charge
14.2 — 15.5 Vdc

Float
13.4 — 13.8 Vdc

Equalize
16 V

DC output connections
Three

AC input voltage
90-265 Vac; 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal

Temperature compensation
Three settings

Charger efficiency
Greater Than 80 percent

Battery type
Gel, Flooded, AGM, Lithium-Ion

Minimum recommended battery bank size
80 Ah

Operating temperature
0—60 degrees C (32—140 degrees F)

Weight
4.8 lb (2.2 kg)

Warranty
Two year

Dimensions
70 x 170 x 250mm (2.8 x 6.7 x 9.8in)
